Bryant Curb Adapters — Every Model
SMARTCurb has verified curb geometry for 44 Bryant rooftop-unit models — from the 50TCQD14 to the PACD1240. The catalog includes the DuraPac Plus, Legacy Line lines, among others. Curb footprints on file range from 42.75″ × 36″ up to 199″ × 86″. The source data ties this range to roughly 3–25 tons of cooling capacity. Every adapter compiled from this data ships as fully welded 16-gauge galvanized steel, fabricated by Taylor Metals in Pitt Meadows, BC. 13 of the 44 pages below also carry a manufacturer product photo. Browse the list below, or jump straight into the workspace to compile an adapter.
Bryant 542DPX090/120
84.5″ × 60.5″ footprint
542DPX090/120, 559C**090/120/150, 579C**090/120/150, 599C**090/120/150…
Bryant 542G**018/024/030/042/048
66″ × 38″ footprint
542G**018/024/030/042/048, 559G**018/024/030/036/048
Bryant 547L*04-07
70.87″ × 40.69″ footprint
547L*04-07 (Legacy Line heat pump), 559L*04-07 (Legacy Line gas/electric), 582L*04-07 (Legacy Line gas/electric), 581J*04-06 (Preferred, gas/electric, built 4/15/2019+)…
Bryant 554A**018-042
46″ × 39.5″ footprint
554A**018-042, 580A**018-042, 584A**018-042, 48NET036/042…
Bryant 554A**048/060
56″ × 46″ footprint
554A**048/060, 48NHT036/042/048/060, 48NLT048/060, 48NMT048/060…
Bryant 559B**024/030
46″ × 42.5″ footprint
559B**024/030, 584B**048, 587A*018/24/30/36/42/48/060, zzz_…
Bryant 559C**090/120/150
84.5″ × 60.5″ footprint
559C**090/120/150(C), 579C**090/120/150(C), 599C**090/120/150(C)
Bryant 559C**300/360
164.75″ × 69.5″ footprint
559C**300/360, 579C**300/360, 599C**300/360, PACD1300/360…
Bryant 559D**036/048/060/078
61.5″ × 37″ footprint
559D**036/048/060/078, 50CD*004/005/006/007, 50QD*006
Bryant 579D**036/048/060
69.5″ × 37″ footprint
579D**036/048/060, 48HD*004/005/006/007, 48HDT004/005/006/007, 48LD*004/005/006/007…

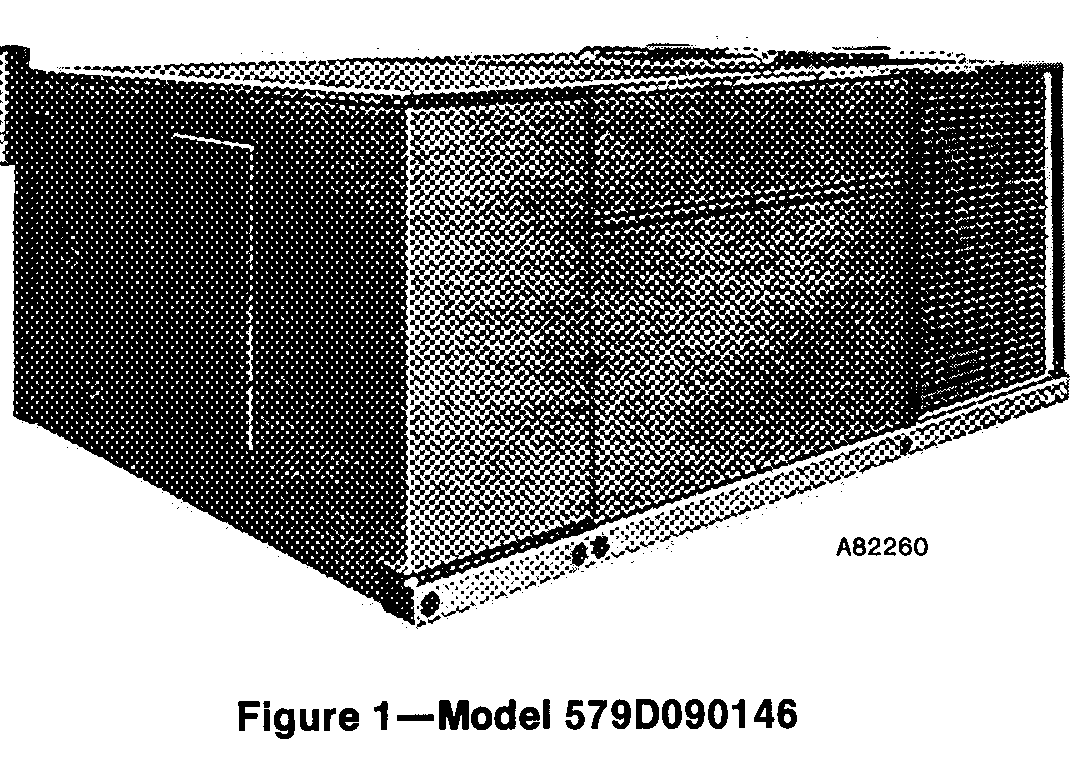

Bryant 579D**120/150
78″ × 74.5″ footprint
579D**120/150, 559D**120/150(L), 559D**180 (L), 579D**180
Bryant 579J**060
69.5″ × 62.5″ footprint
579J**060, 585C**018/024/030/036/048/060, 585D**018/024/030/036/048/060, 585EP*018/024/030/036/042/048/060…
Bryant 580A**048/060
56″ × 46″ footprint
580A**048/060, 584A**048/60, 587A*018/24/30/36/42/48/060 (L), 48SB060
Bryant 585EP*018/036
59.5″ × 50.5″ footprint
585EP*018/036, 585H**018(040)-036(080), 585J**018(040)-036(080)
