Lennox Curb Adapters — Every Model

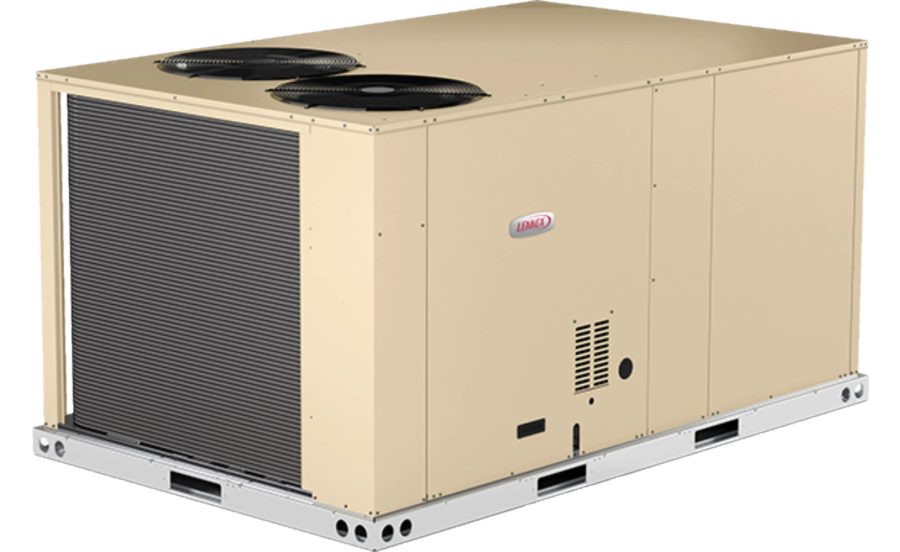

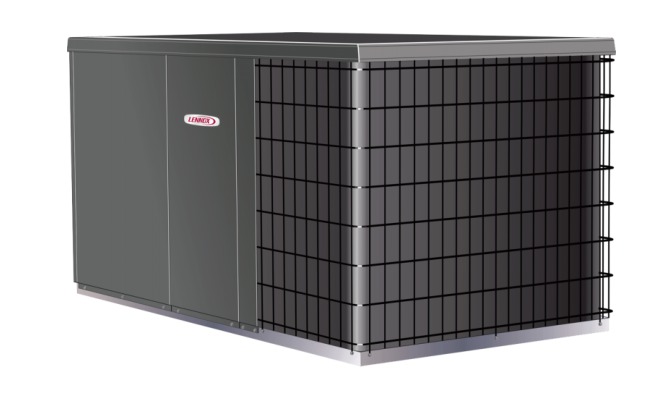

SMARTCurb has verified curb geometry for 75 Lennox rooftop-unit models — from the 13CHAA24/30/36 to the ZHD060S. The catalog includes the L Series, Xion, Raider lines, among others. Verified curb footprints span 39″ × 28″ to 258″ × 315.5″ across the line. The source data ties this range to roughly 3–25 tons of cooling capacity. Every adapter compiled from this data ships as fully welded 16-gauge galvanized steel, fabricated by Taylor Metals in Pitt Meadows, BC. 66 of the 75 pages below also carry a manufacturer product photo. Pick a model below to see its footprint and open it in the SMARTCurb workspace.

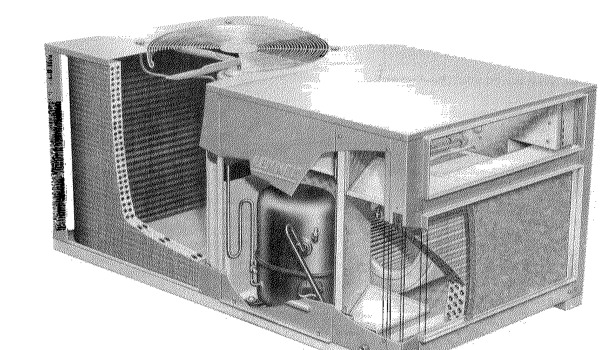

Lennox CHA10261/311/411/413/461/463/511/513
80″ × 39″ footprint
CHA10261/311/411/413/461/463/511/513, CHA10B651/653, CHA9261/311/411/413/461/463/511/513/651/653, CHP09261/311/411/413/461/463/511/563…
Lennox CHA10411/413/651/653
39″ × 80″ footprint
CHA10411/413/651/653, CHA9261/311/411/413/461/463, CHP10411/413/651/653

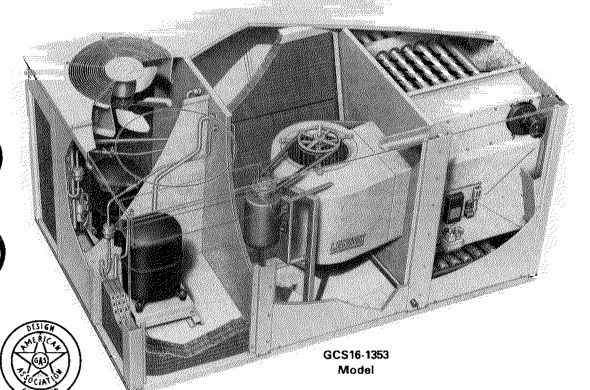

Lennox CHA16 2553/2753/3003
156.5″ × 81″ footprint
CHA16 2553/2753/3003, CHA242553/2753/3003, GCS16 2553/2753/3003, GCS24 2553/2753/3003

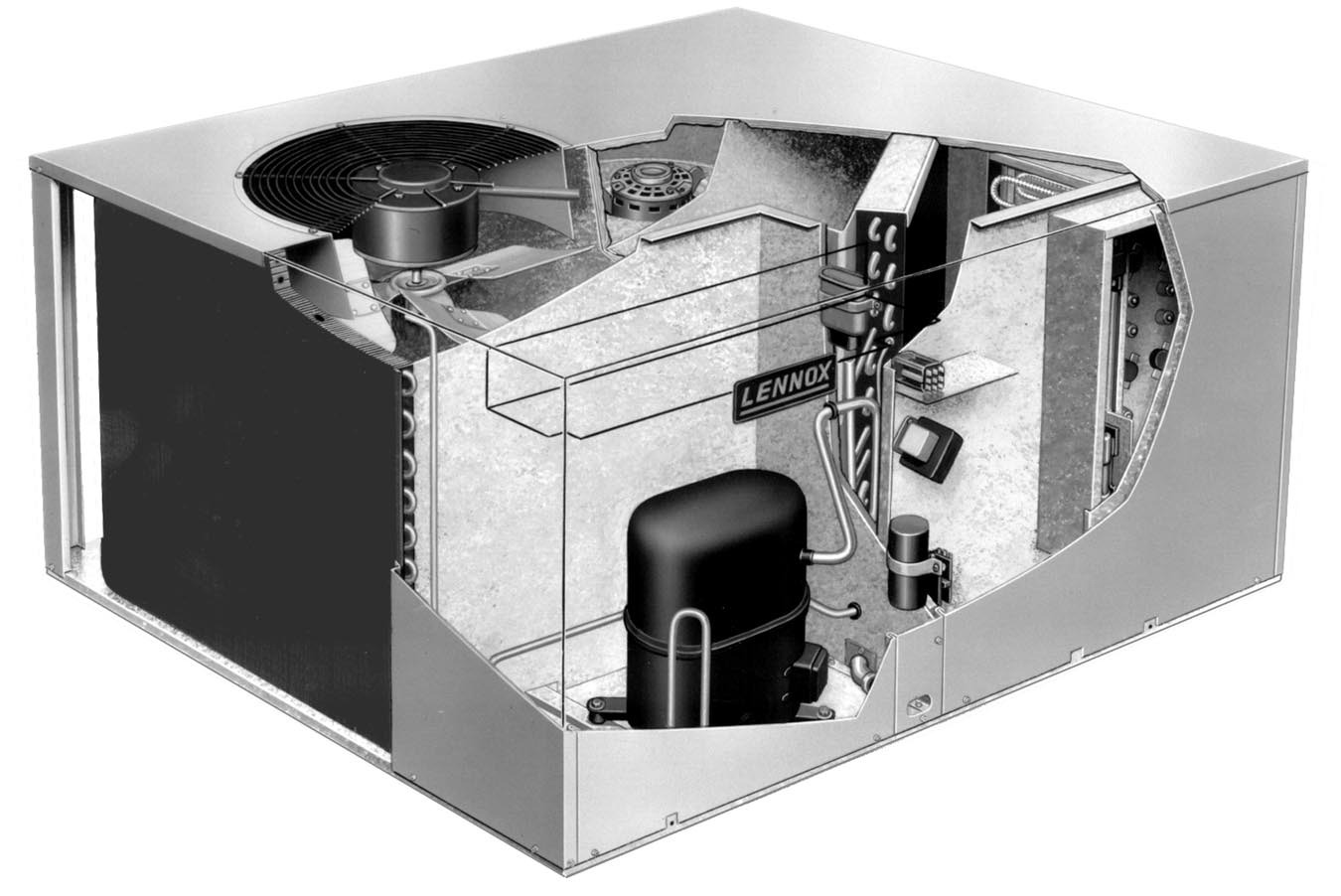

Lennox CHA16024/36
56.5″ × 45″ footprint
CHA16024/36, CHA16048/60, CHA16261/311/411/413, CHA16511/513/651/653…
Lennox CHA16048/60
69″ × 50.5″ footprint
CHA16048/60(L), CHA16511/513/651/653(L), CHA16W411/413, CHP16048/60(L)…
Lennox CHA16H261/ 311
60″ × 45″ footprint
CHA16H261/ 311, CHP16H261/311, GCS20H24/30, GCS20H261/311…
Lennox CHA24653/813
82.5″ × 41.5″ footprint
CHA24653/813, CHA24D651/653, CHP24D651/653, GCS24653/813…

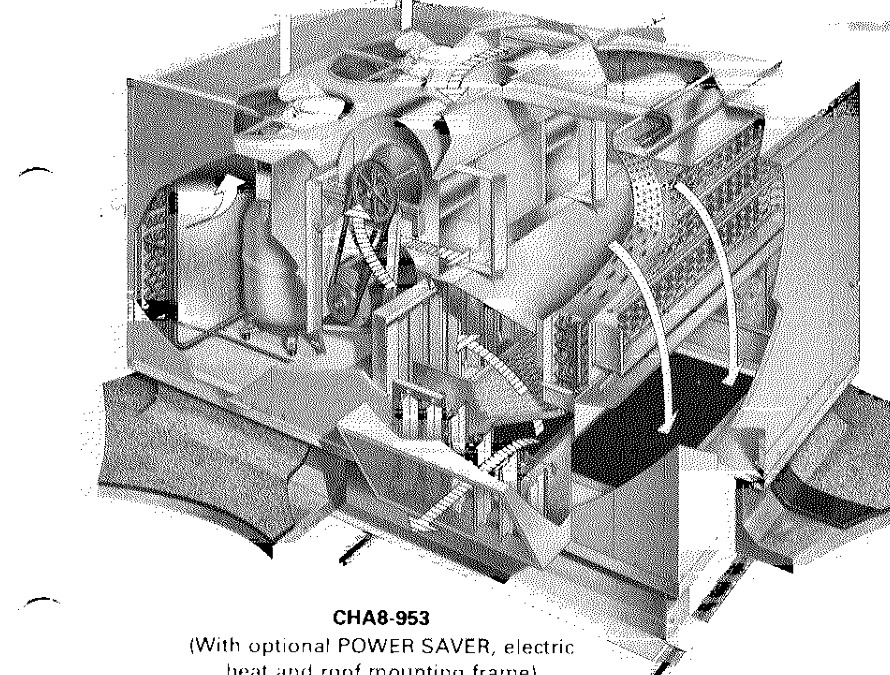

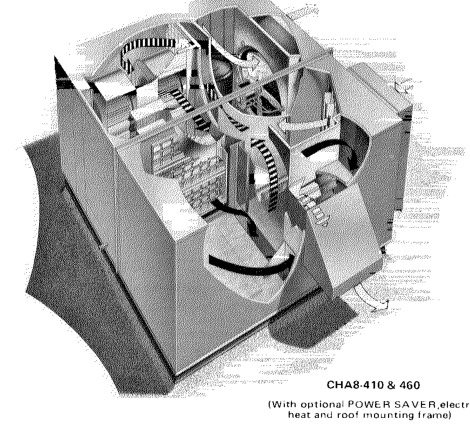

Lennox CHA8411/413/461/463
65.5″ × 60″ footprint
CHA8411/413/461/463, CHP8411/413, GCS3411/413/461/463

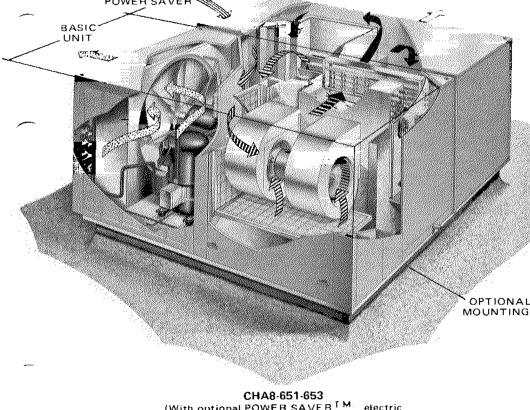

Lennox CHA8511/513/651/653
78.5″ × 68″ footprint
CHA8511/513/651/653, CHP8511/513/651/653, GCS3511/513/651/653
Lennox CHA8511/513/651/653
89″ × 78.5″ footprint
CHA8511/513/651/653(C), CHP8511/513/651/653(C), GCS3511/513/651/653(C)

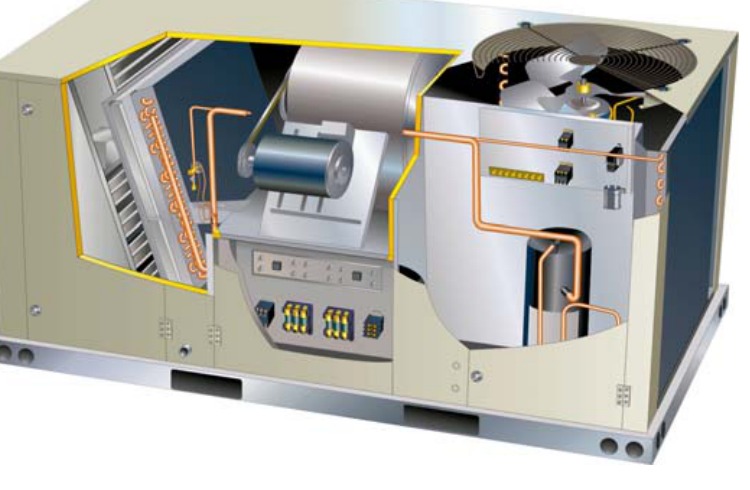

Lennox KCA092/102/120/150
95.5″ × 54.5″ footprint
KCA092/102/120/150, KGA092/102/120/150, KHA092/102/120/150, LCH092/102/120/150…

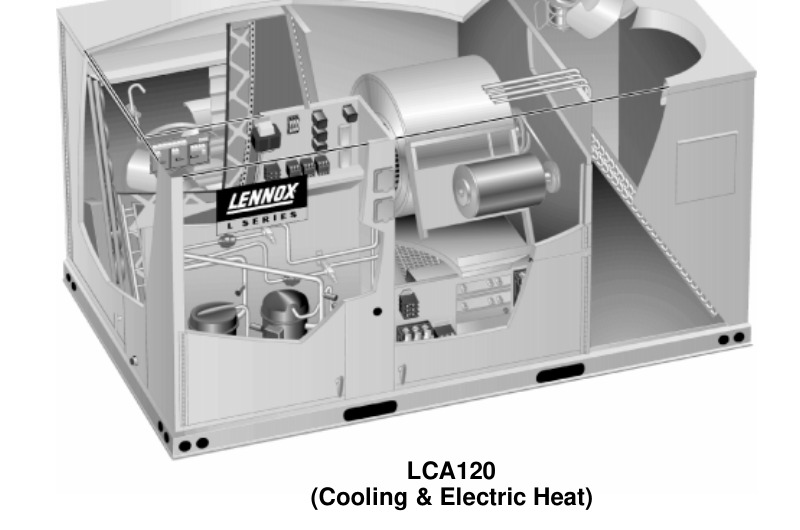

Lennox LCA090/102/120/150
95.5″ × 54″ footprint
LCA090/102/120/150, LCC090/102/120/150, LGA090/102/120/150, LGC090/102/120/150…
Lennox LCC248H/300H/360H
115″ × 85.5″ footprint
LCC248H/300H/360H, LGC248H/300H/360H, SCB288H, SGA288H…

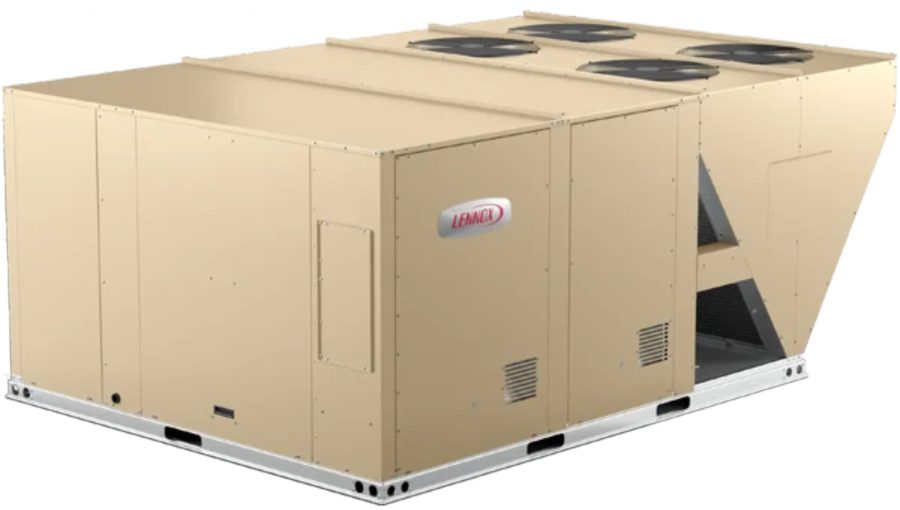

Lennox LGX024S5xx1Y
79.75″ × 41.5″ footprint
LGX024S5xx1Y, LGX036S5xx1Y, LGX048S5xx1Y, LGX060S5xx1Y…
Lennox LGX092S5xx1Y
95.375″ × 54.25″ footprint
LGX092S5xx1Y, LGX102S5xx1Y, LGX120S5xx1Y, LGX150S5xx1Y

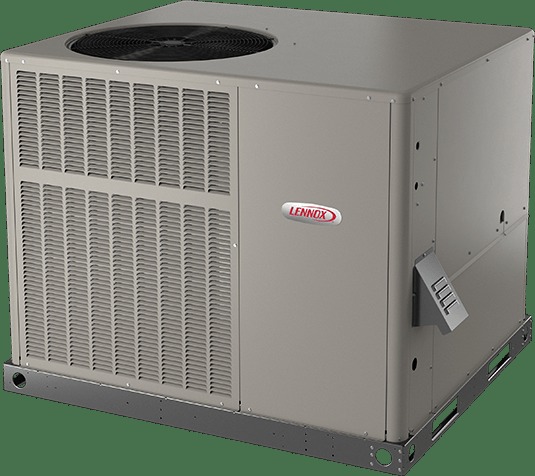

Lennox LRP14GE24/30/36
44.5″ × 44.5″ footprint
LRP14GE24/30/36(B), LRP14AC24/30/36(B), PRPAC1424/30/36(Y), PRPGE1424/30/36(Y)…
Lennox LRP14HP42/48/60
53″ × 44.5″ footprint
LRP14HP42/48/60(B), LRP16**42/48/60(B), LRP14GE42/48/60, LRP14AC42/48/60
Lennox RPGE054E-71324/30/36
44.25″ × 44.25″ footprint
RPGE054E-71324/30/36, PRPDF1624/30/36, LRP14GE24/30/36, LRP15GE24/36…
Lennox RPGE126E-7**60
53″ × 44.5″ footprint
RPGE126E-7**60, PRPAC1442/48/60, PRPDF1642/48/60, LRP15GE48/60…
Lennox ZCA/B036/048/060/072
71″ × 42″ footprint
ZCA/B036/048/060/072, ZGA/B036/048/060/072, ZHA/B036/048/060/072
Lennox ZCA092/102/120/150
89.5″ × 54″ footprint
ZCA092/102/120/150, ZCB092/102/120/150, ZCC092/102/120/150, ZCD092/102/120/150…
