Trane Curb Adapters — Every Model

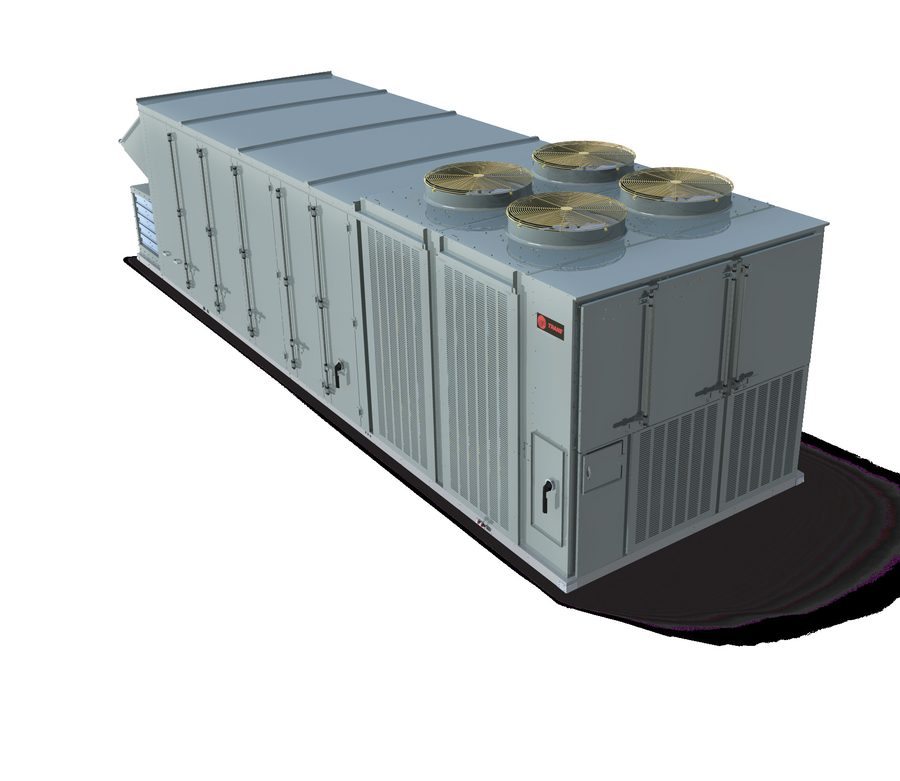

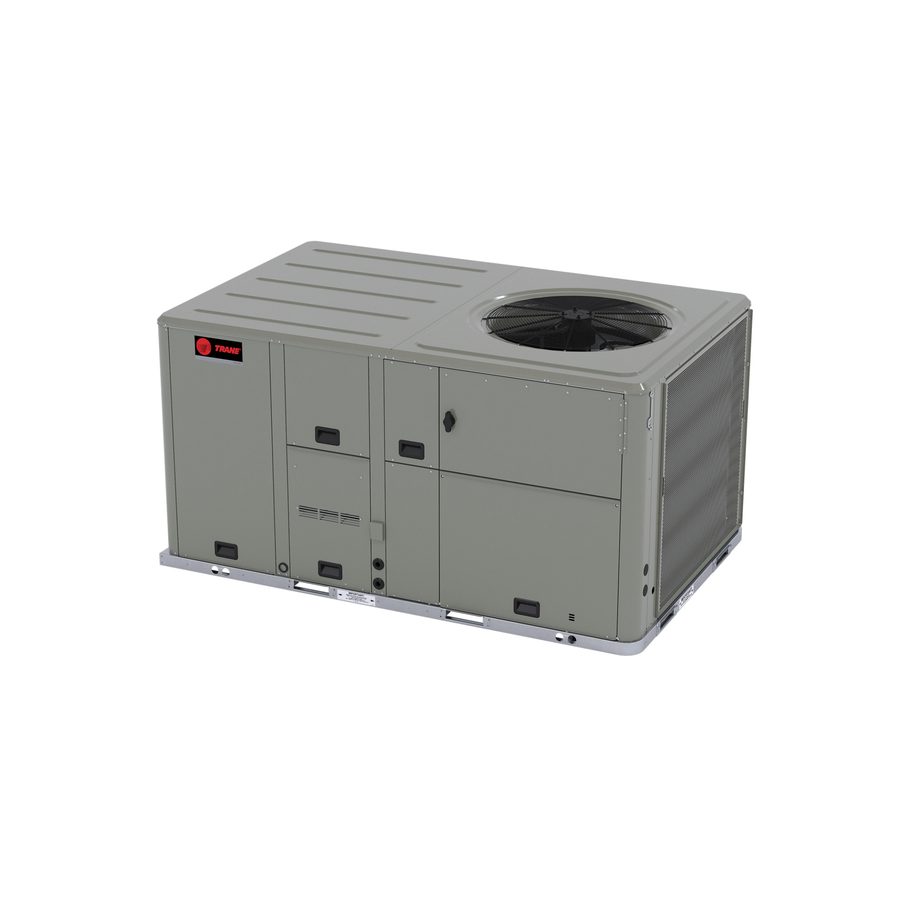

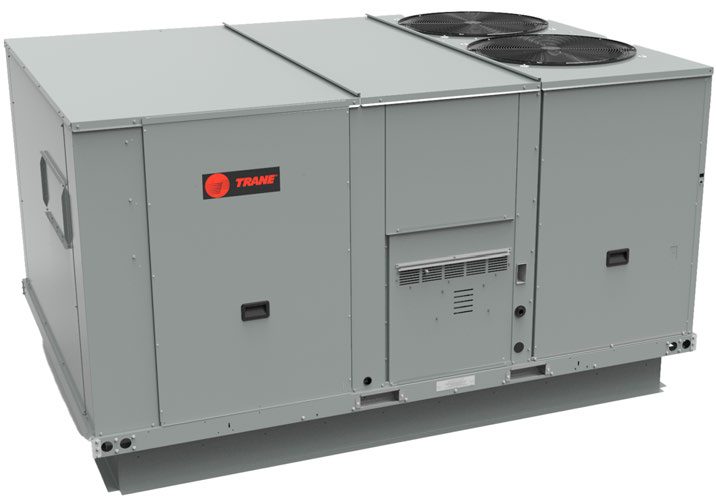

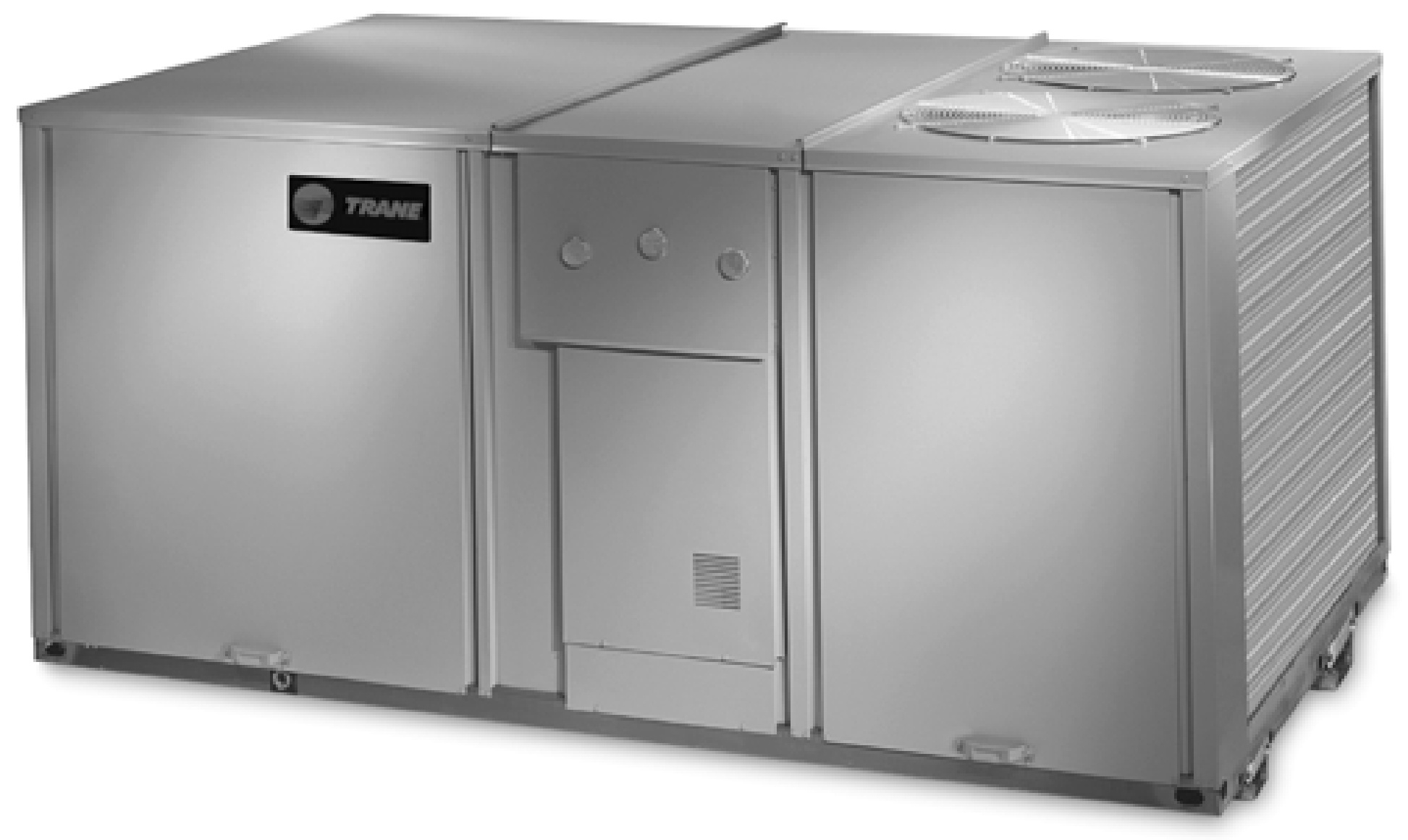

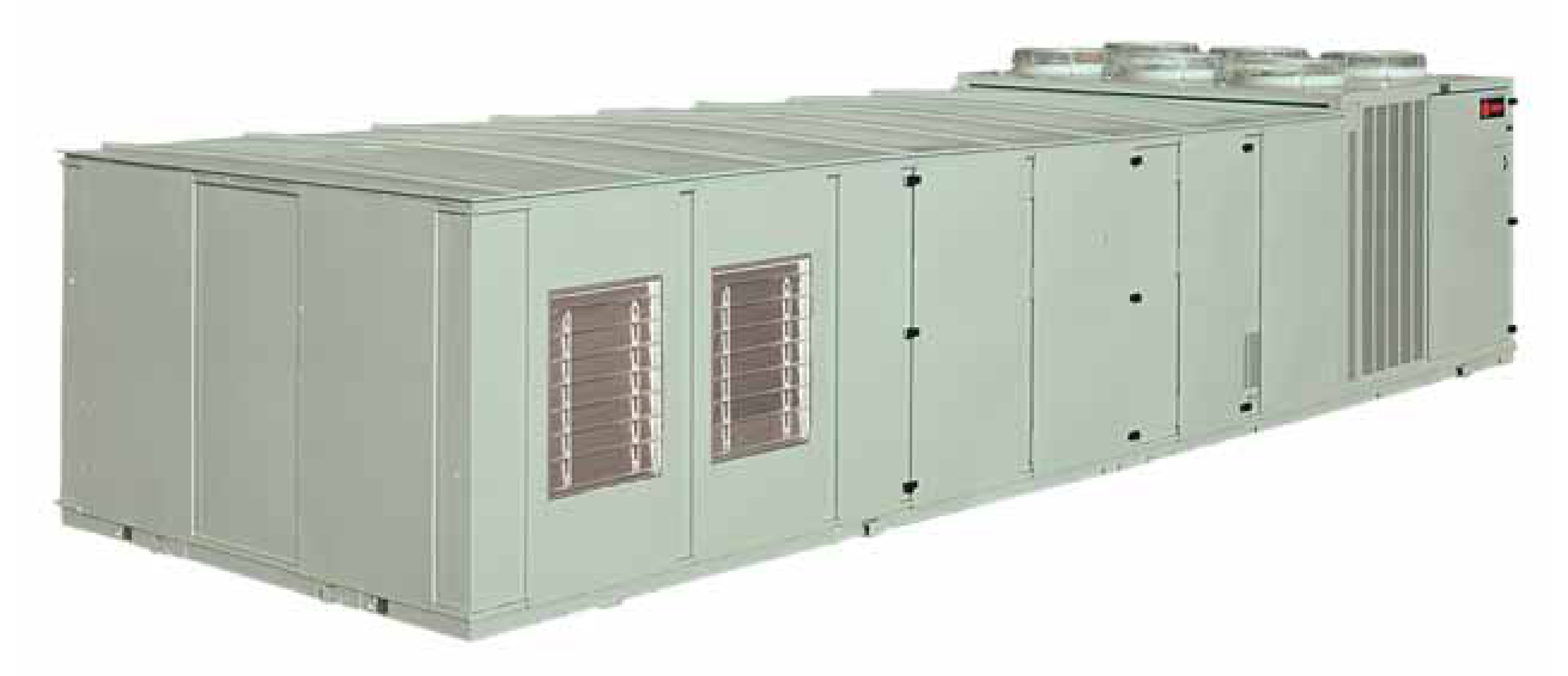

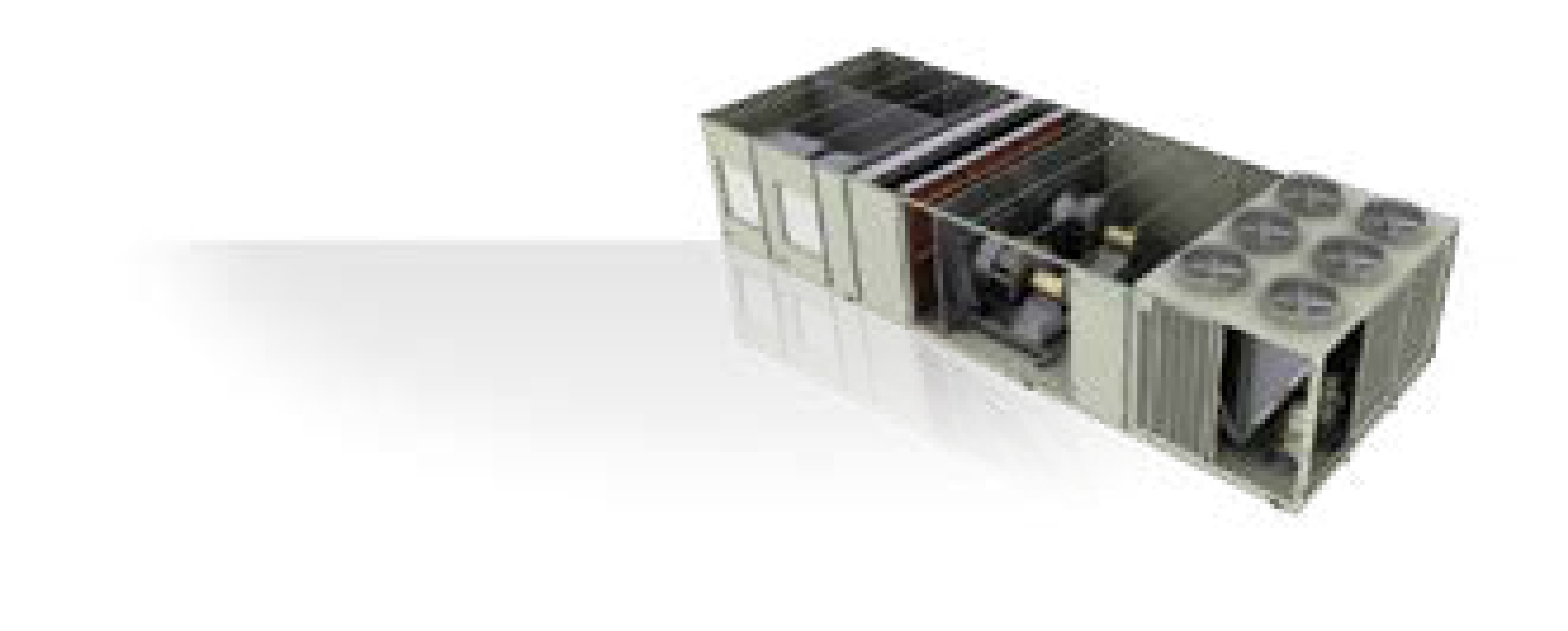

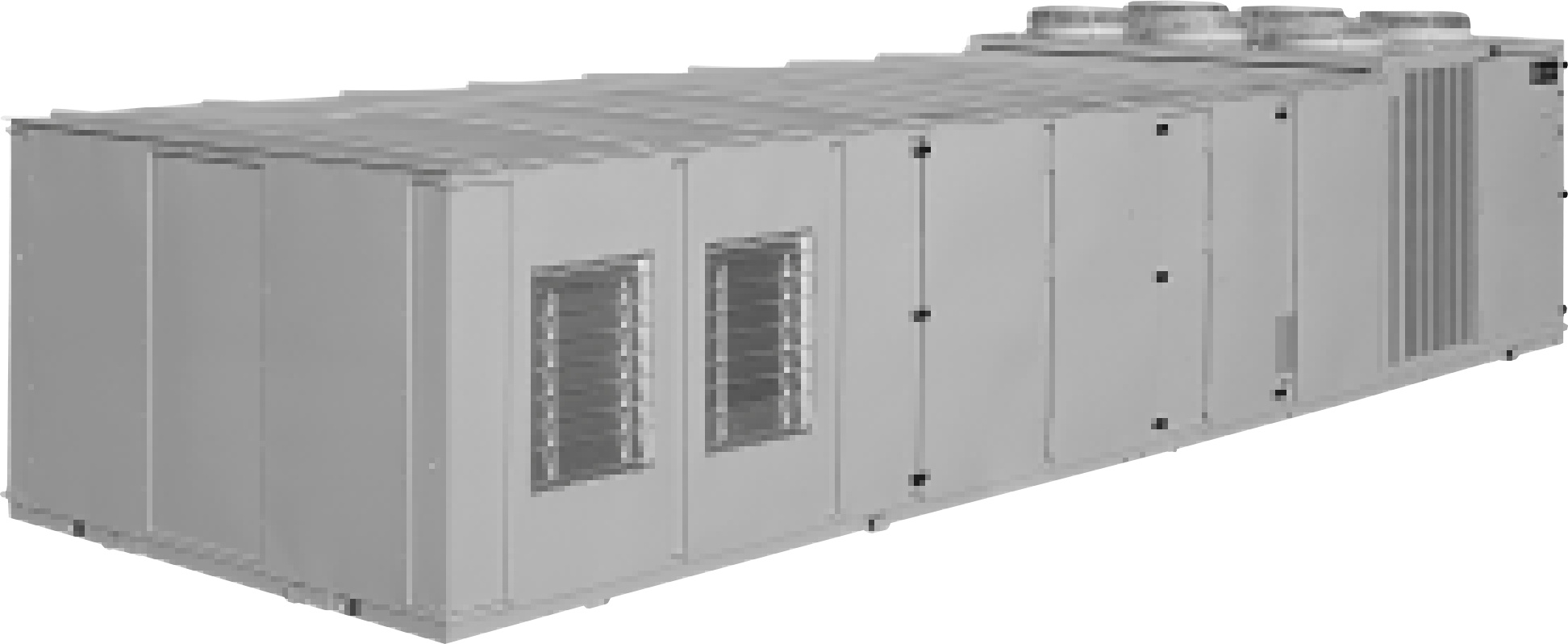

Every Trane model SMARTCurb has verified curb geometry for is listed here — 68 in total, from the 4YCY4024 to the YCD330/360/420. The catalog includes the IntelliPak, Precedent, Foundation lines, among others. Verified curb footprints span 46″ × 24″ to 418″ × 134.375″ across the line. The source data ties this range to roughly 3–75 tons of cooling capacity. 1 of the units listed here shares a curb footprint with at least one other model number — a common OEM rebadge or platform-reuse pattern, so it's worth confirming the exact model before ordering. Every adapter compiled from this data ships as fully welded 16-gauge galvanized steel, fabricated by Taylor Metals in Pitt Meadows, BC. 62 of the 68 pages below also carry a manufacturer product photo. Pick a model below to see its footprint and open it in the SMARTCurb workspace.
